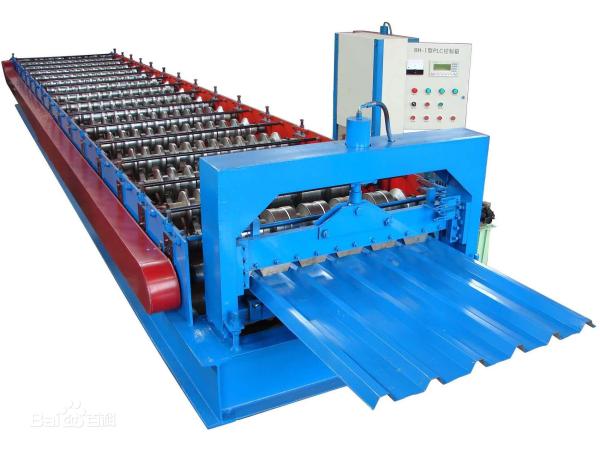

Custom Made Roofing roll formers Customized Roof Panel Forming 380V / 50Hz

Brand Name : WDL

Model Number : WDL-C1

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : D/A, L/C, T/T, Western Union, MoneyGram

Supply Ability : 100

Delivery Time : 28days

Packaging Details : wooden

Warranty : 1 Year

After-sales service provided : Online support

Condition : New

Weight : 3200kgs

Dimension(l*w*h) : 2700/2300/2350

Voltage : Customized,380V/50Hz

Machine type : High efficiency

Color : Custom-made

Contact Now

Custom Made Machining Center Customized Roof Panel Forming 380V / 50Hz

Main Technical Data

1. Dimensions: length 6000mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 8-12 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm
5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm;

More details pic of machine

Custom Made Roofing roll formers Customized Roof Panel Forming 380V / 50Hz

Customized Double Layer Color Steel Pressure Tile Roll Forming Machine:

Wave one tile roll forming machine Custom Made Roofing roll formers Customized Roof Panel Forming 380V / 50Hz

Most popularity design tile roll forming machine

Custom Made Roofing roll formers Customized Roof Panel Forming 380V / 50Hz

Other design of tile roll forming machine, we also could customized to you, just share us your details about:

1) Your details design.

2) Wide profile

3) High trapezoidal ribs

4) The center with two minor ribs between the major ribs.

Packing and shipping of machine

Packing of Tile Roll Forming Machines: Usually because it is very large, so we use wooden package to make it more stable.Or shipping by containers, which will be more convenient and safty.

Shipping of Tile Roll Forming Machines: You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.

Custom Made Roofing roll formers Customized Roof Panel Forming 380V / 50Hz
