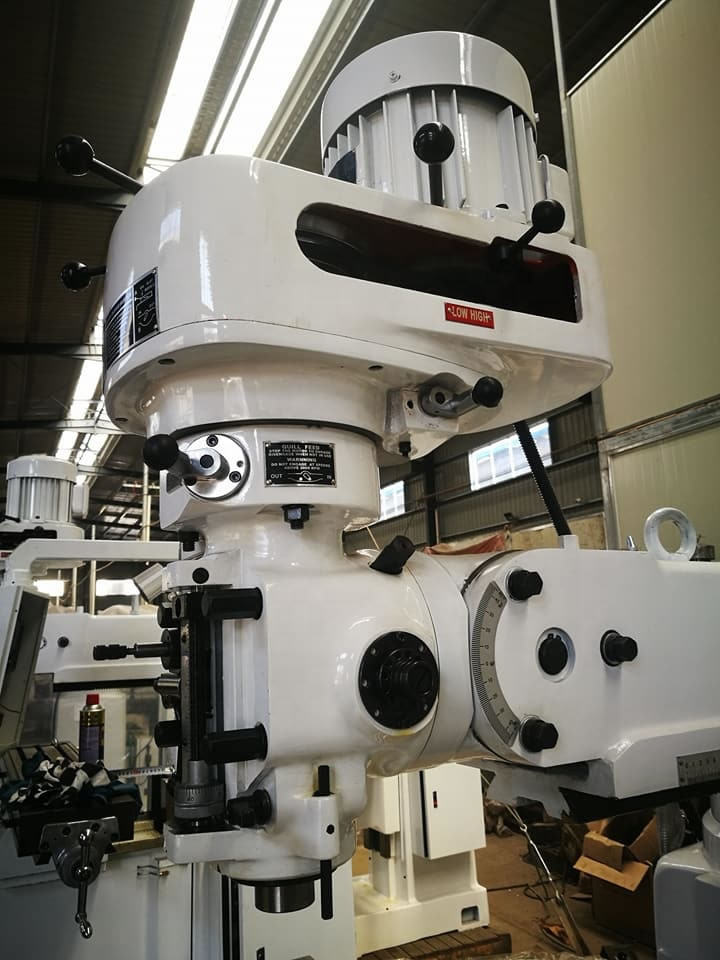

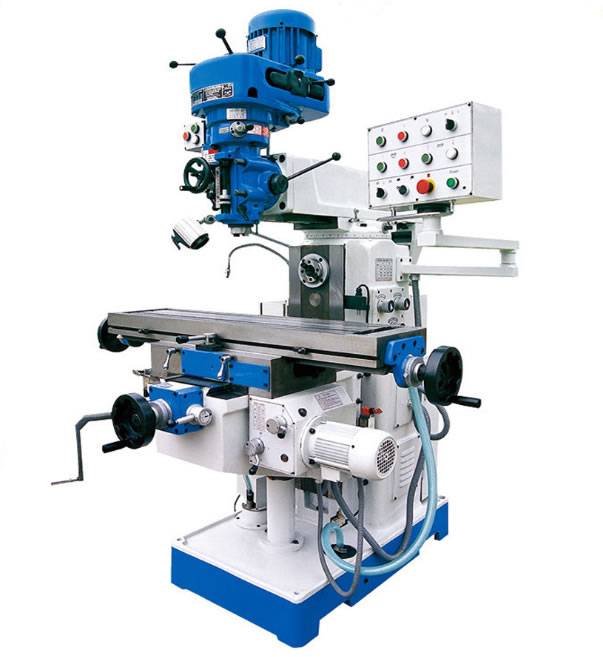

Vertical And Horizontal Turret Milling Machine X6328 High Precision Metal Processing Rocker
1. X6328A universal rocker milling machine can realize two processing functions of vertical and horizontal milling.
2. Gear transmission, spindle sleeve feed can be tapped, with manual feed function of spindle with three speeds, wide speed range.
3. Worktable X, Y, Z three-way maneuvering; X-direction stroke 600mm. X, Y, Z three-way guide rail sub-audio quenching, precision grinding and scraping.
4. Manual lubrication device can force lubrication of lead screw and guide rail.
The X6328 turret milling machine has 3H/4H/5H models, 3H minimum and 6H maximum. In fact, it means to match 3, 4, 5, 6, and a variety of tools. 3H: left and right (X axis) and upper and lower (Z axis) guide rails are dovetail guide rails, front and rear (Y axis) guide rails adopt square guide rails; 4H: left and right (X axis) guide rails are dovetail guide rails, up and down (Z axis) and front and rear (Y The axis guide rail adopts square guide rail and turret milling machine milling machine. It is an economical drilling and milling machine developed by our company combining the advantages of drilling machine, milling machine and other machine tools. The structure is reasonable and the operation is convenient. It can carry out the milling processing of planes, end faces and grooves of small and medium-sized mechanical parts, and can also punch, ream, ream, tap and boring parts. With the bowl-shaped grinding wheel, the grinding surface of the processing surface of the parts and the guide rails can be processed to achieve multi-purpose, energy-saving and high-efficiency. It is an ideal processing equipment for machining, mold manufacturing and repairing.
| Specifications | Units | X6328B |
| Table size | mm | 1120x260 |
| Table stroke | mm | 600x270x300 |
| T-type slot numbers / width /space | mm | 3-14-63 |
| Distance between spindle nose to table surface | mm | 100-400 |
| Distance between spindle axis and column surface | mm | 100-400 |
| Spindle travel | mm | 127 |
| Spindle taper(V/H) | | ISO40 |
| Spindle speed range | rpm | 65-4660(V)38-1310(H) |
| Spindle motor power | KW | 2.2 |
| Overall dimensions | mm | 1710x1480x2100 |
| Machine weight | Kg | 1350 |
